LD6000 combi-detector

The new LD6000 combi detector is the world’s first combi device that is designed to provide you with a means of detecting leaks using acoustics and trace gas!

Whether you need it for laying out pipes or to narrow down the search or pinpoint a leak – the highly-sophisticat­ed LD6000 and the high-quality microphone, which both carry the hallmarks of a product made in Germany, allow you to determine even the tiniest of leaks and display the signal before it is processed.

Benefits in practice:

Acoustic and trace gas leak detection in only one device

High-resolution colour graphic display with touchscreen functions

The only one of its kind in its class. State-of-the-art smart function for even faster pinpoint leak detection (patent filed)

Numerous preprogrammed common applications for quick access

All filters and parameters can be configured individually

Pipe detection mode

Complies with all guidelines govern­ing according to VBG 121 (when used with original headphones) (VBG – trade association safety regulations)

Highly-sensitive, high-quality, robust precision microphone made in Germany

Technicle data:

Operating mode: Acoustic leak detection (F & L, smart, long-termmeasuring), and trace gas leak detection

Measuring and device functions: Measuring modes for minimum sound levels, averaged sound levels, pulse wave measurements, simultaneous F&L analysis, logging function, memory preference function for manual fine adjusting, sound level overmodulationprotection, trace gas detection with concentration-dependent signal (optic and acoustic)

Controls: Either via touchscreen, keys or control dial

Amplification: 120 dB low noise factor

Input impedance: 1 Ω

Filter: Up to 256 can be configured individually (for stick sensor and ground microphone)

Display: Colour LCD (automatic illumination), 480 x 272 pixels

Battery check: Via micro-controller

Output impedance: ≤ 10 Ω

Power supply: 4 x batteries type LR14 C 1.5 V

Operating time: approx. 14 h in non-stop mode, approx. 40 h in case of normal use

Connections: Bayonet nut connector (microphone / sensor), 6.3 mm jack plug (headphones)

Protection class: IP54

Housing: Aluminium, powder-coated

Temperature conditions: During operation: -5 °C to +55 °C; Storage: -25 °C to +65 °C

Dimensions approx.: L 210 x W 160 x H 60 mm

Weight approx.: 1,050 g

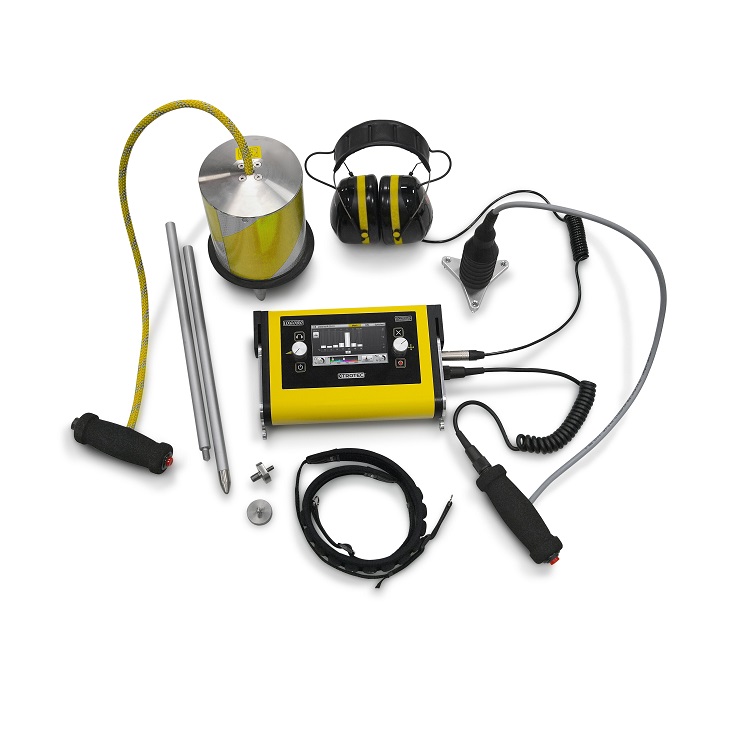

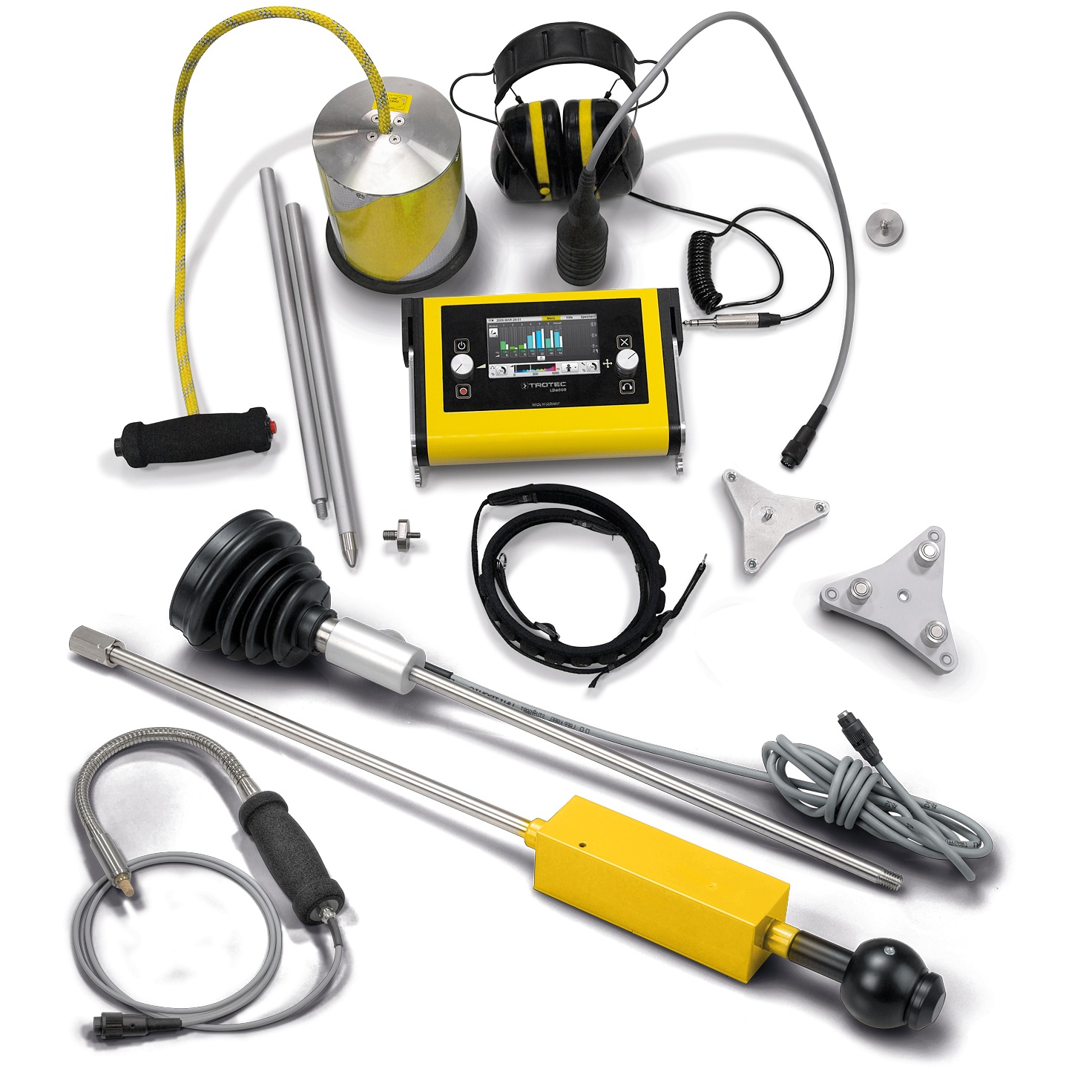

Standard scope of delivery: LD6000 measuring device, LD K – soundproof headphones, LD6000 BM – ground microphone, small (with automatic vigilance device), LD6000 DA – tripod adapter, LD6000 VK – connecting lead, LD6000 VL – extension with tip, LD6000 TG – shoulder strap, LD6000 carry case

Optionally available accessories: LD6000 BMW – wind-protected ground microphone, small, LD6000 DM – tripod magnet for ground microphone LD6000 BMW, LD6000 H2 – hydrogen sensor
