CM COMPLETE SET BUSINESS
The professional CM measurement instrument with digital precision
With the CM Business you have a professional precision measurement instrument – equipped with a digital manometer with overpressure protection up to 3 bar.
You get the CM Business at Trotec in a complete set, consisting of measurement instrument and CM-Basic Set.

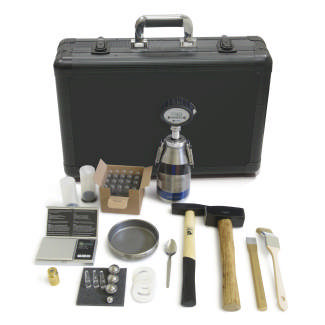

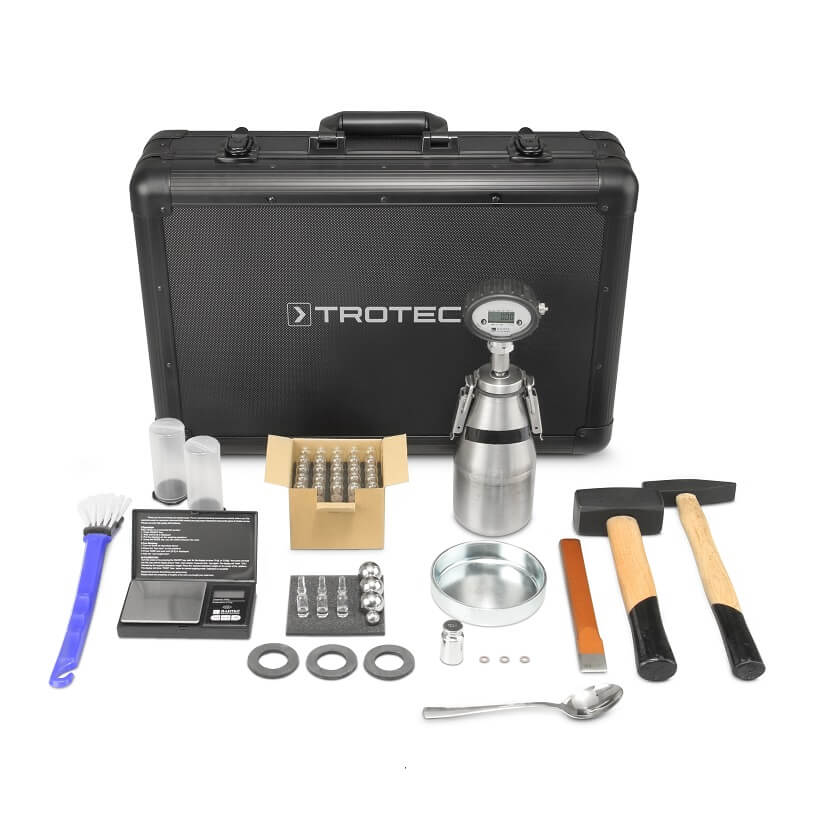

Content of the CM-Basic Set
- Digital scale
- Weighing capacity 150 g
- Minimum graduation 0.1 g
- Indication stabilisation within 3 seconds
- Mechanical protection via weighing plate covers
- Overload and undervoltage indication
- Auto switch-off
- Calibration weight (100 g) and batteries supplied (3 1.5 V type AAA)
- Weighing beakers (2 pc.)
Weighed portion can be filled directly into the cylinder – no more spilling, how convenient - Full tool kit for sample preparation
- Ball set with 4 steel balls (starting, blending and grinding effect)
- 20 pieces of carbide ampoules
- 3 test ampoules with 1.00 g of water for cylinder leak test/pressure gauge test
- 3 spare seals each for pressure gauge and pressure cylinder, spoon and cleaning brush
- Lucid operating instructions and quick start guide
- Metal carrying case – everything stays in its place, protected for transport
CM COMPLETE SET BUSINESS
- קניה בטוחה
- הדרכה והטמעה
- משלוח מהיר
- שירות תיקונים
למה כדאי לכם לקנות אצלנו?
- קניה בטוחה
- הדרכה והטמעה
- משלוח מהיר
- תשלומים
- שירות תיקונים
- קניה בטוחה
- הדרכה והטמעה
- משלוח מהיר
- תשלומים
- שירות תיקונים
אפשר לראות מדי לחות שלנו כאן.
תבקרו בערוץ Youtube של NDT24 כאן.
| TECHNICAL DATA | ||
|---|---|---|
| General information | ||
| Article number | ZB9100106 | |
| Pressure [bar] | ||
| Max. fault tolerance [mbar] | ± 2 | |
| Accuracy class pressure gauge | ± 0.1 % typ. ± 4 mbar (absolute, over the entire pressure range) | |
| Attenuation pressure gauge cover | DIN-EN 837-2 | |
| Overload-proof to | 3.5 | |
| Interfaces | ||
| RS485 serial | ||
| RS232-TTL or RS232-V.24 | ||
| Display | ||
| LCD | ||
| Touch | ||
| Type of protection | ||
| IP64 | ||
| IP32 | ||
| Device control | ||
| Membrane keyboard | ||
| Housing design | ||
| Plastic | ||
| Maintenance | ||
| Very low | ||
| Regular checks required | ||
| Power supply | ||
| Internal via battery | ||
| External via car power adapter | ||
| Internally via battery | 1 x 3V, CR 2.032 | |
| Surrounding conditions | ||
| Min. operating temperature [°C] | 0 | |
| Max. operating temperature [°C] | 50 | |
| Dimensions | ||
| Length (packaging excluded) [mm] | 140 | |
| Width (packaging excluded) [mm] | 520 | |
| Height (packaging excluded) [mm] | 360 | |
| Weight | ||
| (packaging excluded) [kg] | 8.3 | |
